Home > Products > Open frameCustomized from 7'' to 98'' open frame

Iron cabinet, static resistant, vandal resistant

A grade panel

FHD Compliance: 720P, 1080I, 1080P
Multi input: VGA, DVI, HDMI, DP
Industrial grade components

Design structure as to customers’ drawing

Support 7*24hour continuous working

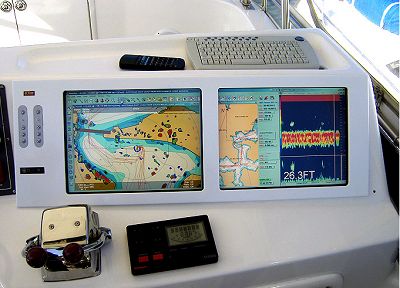

Perfectly suitable for kiosk, ATM, POS, marline, military, medical, transportation, etc. industrial application

Model No.					M19O
Panel size					19" TFT-LCD
Display area(mm)/mode					379(W)×304(H) 4:3
Maximum resolution					1280×1024
Display color					16.7M
Pixel Pitch(mm)					0.294(H)×0.294(V)
Brightness (nits)					300nits
Contrast					1000:1
Visual angle					170°/170°
Response time					5ms
Horizontal frequency					30-75KHZ
Vertical frequency					56-75KHZ
Life(hrs)					60,000(hrs)
Input and Output
Composite video input					2 (BNC×2)
VGA					1
HDMI					1
USB					1
Composite video output					1 (BNC×1)
Video
Color system					PAL/NTSC/SECAM
OSD display( screen menu display)
Menu language					Chinese/English
Power
Power supply					AC100V～240V,50/60Hz
Maximum power consumption					≦35W
Standby power consumption					1W
Temperature
Working temperature					0℃～50℃
Storage temperature					－20℃~60℃
Working humidity					5%-95%
Storage humidity					10%-90%
Appearance
Panel color/appearance					White,black,customized
Case Material					Metal
Installation					Wall-mounted,desktop(optional)
